01.

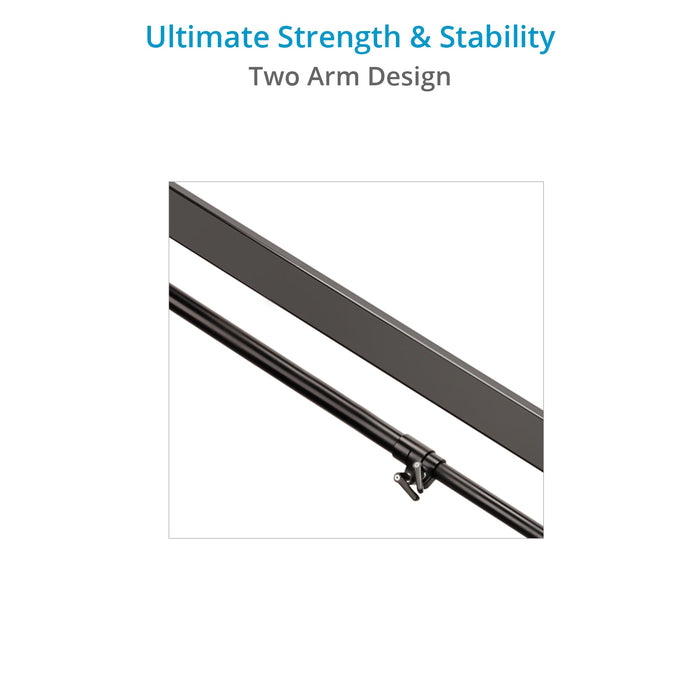

PROFESSIONAL & WELL-DESIGNED JIB CRANE
Proaim 7' Wave-2 with dual-rail design offers enhanced strength & stability for creating sweeping cinematic movements, expanding your creative flexibility.
Ease of packing and a quick no-tool setup system maximizes its versatility.
This travel-friendly Jib extends backward as per operator convenience for better control.

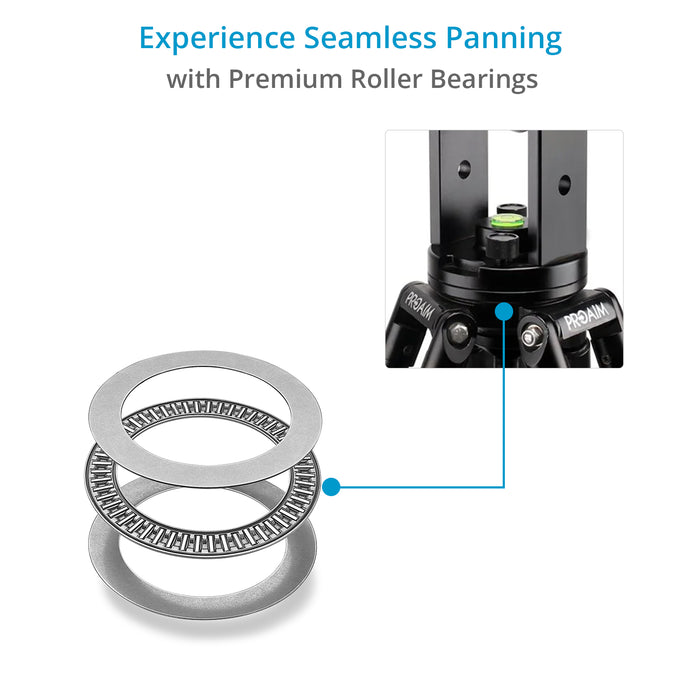

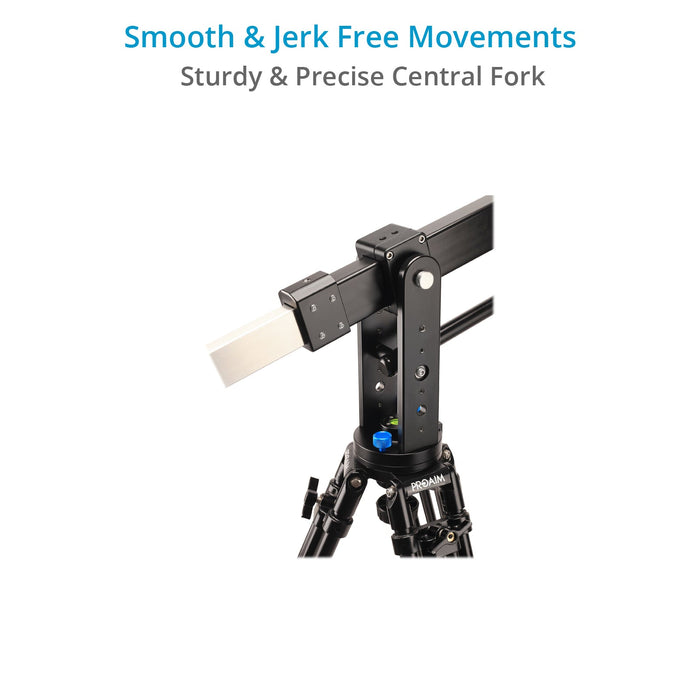

Assembly Hub Provides the perfect drag for smooth panning of the arm.

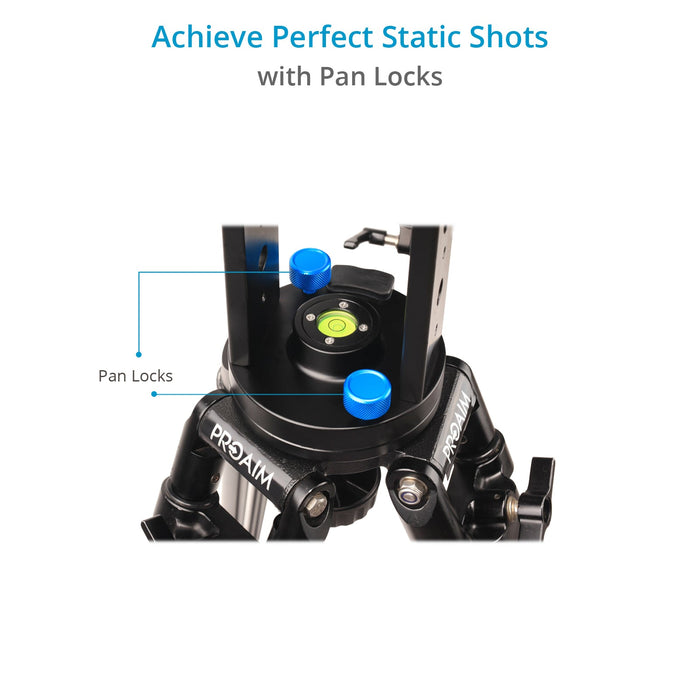

The well-built pan knobs control the panning of the Jib. Built-in bubble leveler allows for fast, accurate set up on uneven surfaces.

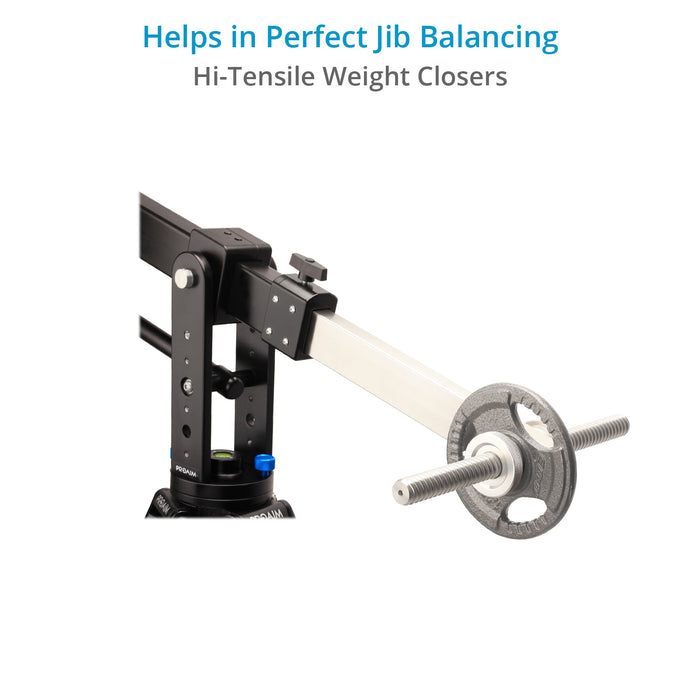

Stronger weight closers keep the weight discs intact for perfect balance.
Powerful, Simple & Affordable

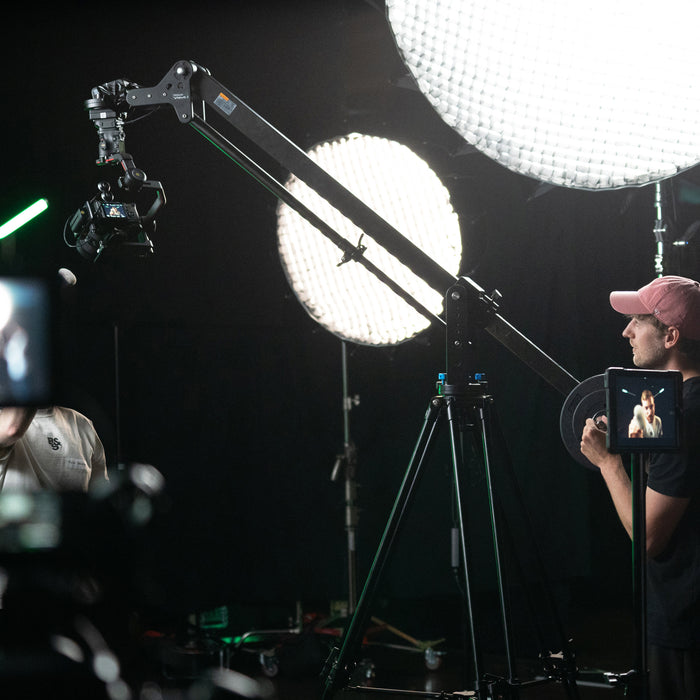

Best Travel Crane for Outdoor Extremes & Indoor Studio Shots!!
02.
COMPATIBILITY

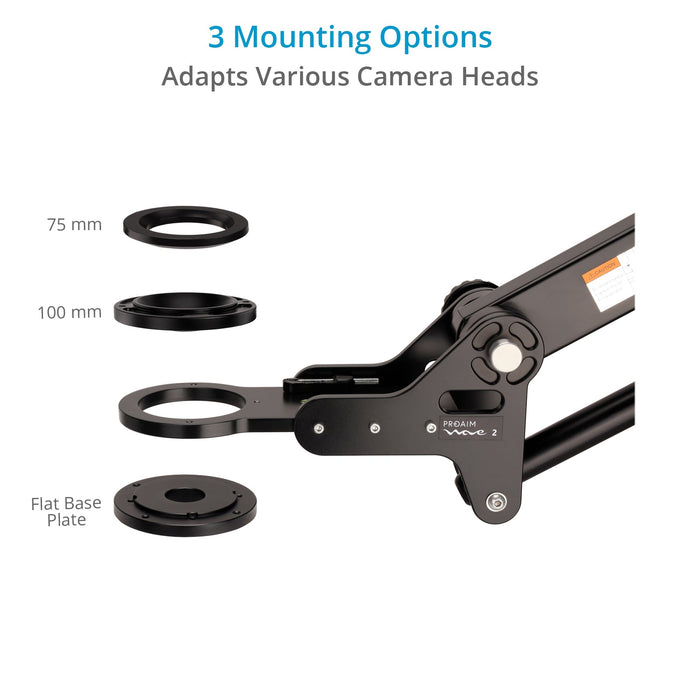

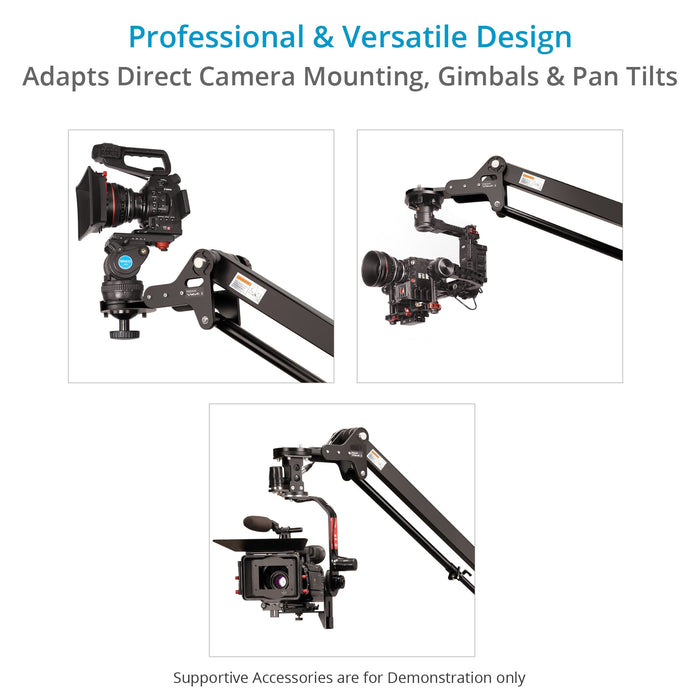

The robust camera mount confidently accepts 75mm/100mm fluid heads.
The Jib is designed to mount a camera of practically any size, weighing up to 25kg / 55lb.

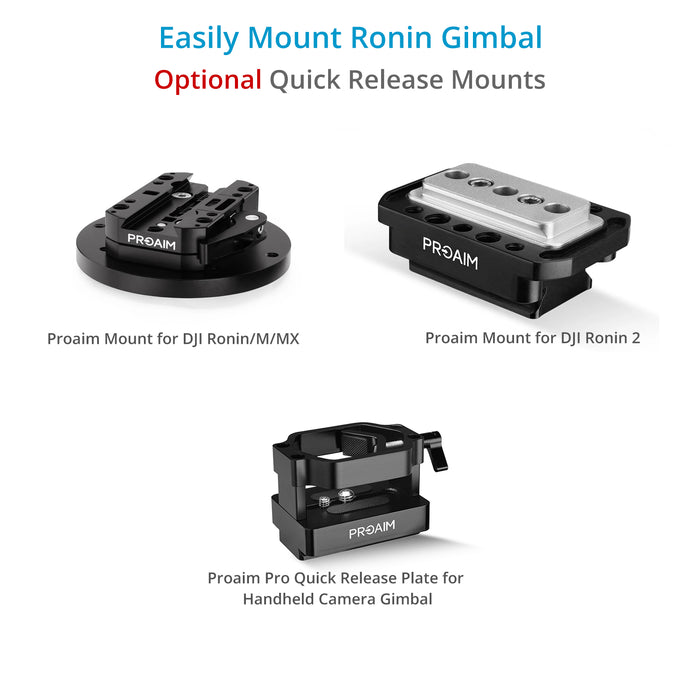

The Jib adapts Pan Tilt Remote Heads & 3-Axis Ronin/Movi Gimbals using separately available compatible adapters.
03.
AFFORDABLE JIB SOLUTION
For rigs under 55lb, there isn't a better crane for the money. Filmmakers often have to sacrifice quality for quantity when building their gear; the 7' Wave-2 eliminates that concern by providing an excellent jib solution at an economical price.
04.
SIMPLIFIED TRANSPORT

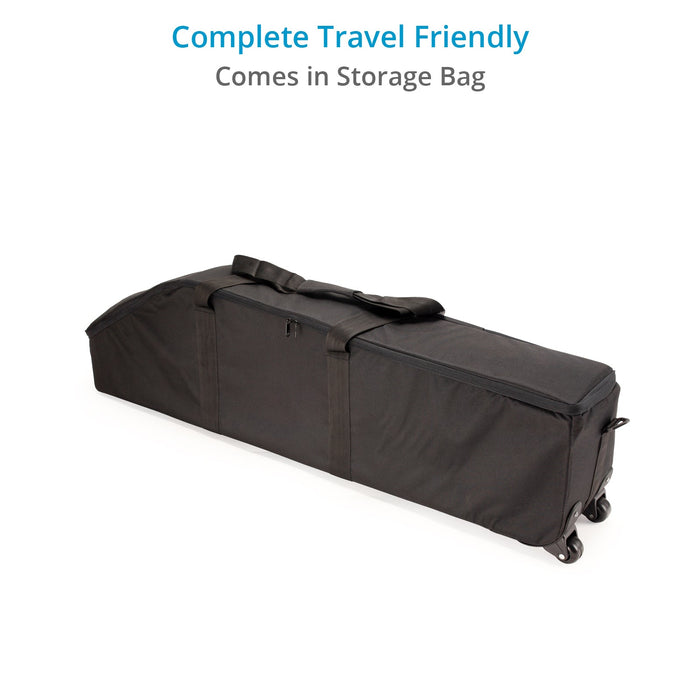

The 7' Wave- 2 comes in a foam padded storage bag to ensure full protection. This travel-friendly compact bag is easy to carry with you to different sets and locations.
IN-ACTION VIDEO
SPECIFICATIONS
Construction
High-grade Aluminum & Stainless Steel
Load Capacity
up to 25 kg / 55 lb
Tripod mount
100mm diameter
Camera Mount
Flat base plate for Pan tilts heads
100mm and 75mm Bowl head (with ring)

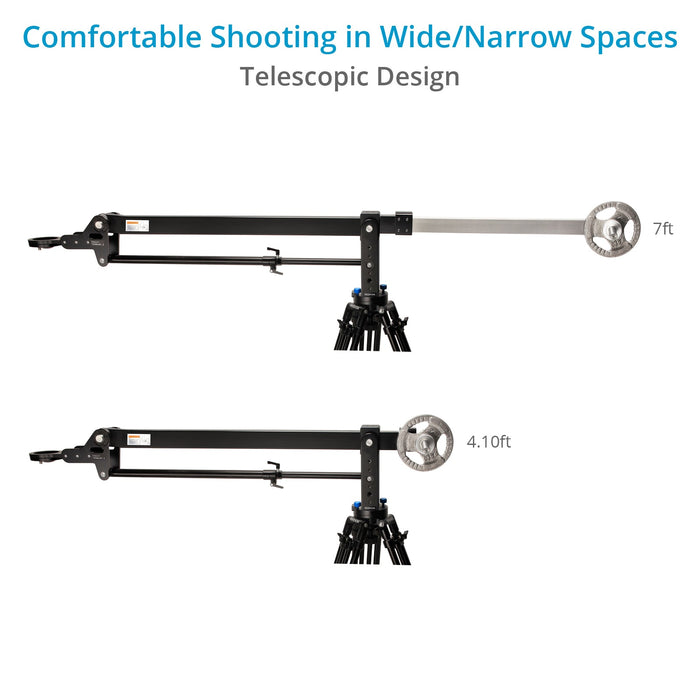

Telescopic Range
4.10 feet to 7 feet
Pan Radius
360 Degrees
Jib Pan Lock
Yes (via pan friction knobs on U-Hub)
Jib Tilt Lock
No
Camera Plate Tilt Lock
Yes (via adjusting the camera head plate knob and ratchet knobs on jib arm)
IN THE BOX
Proaim 7' Wave-2 Video Crane Jib
75mm Conversion Ring
100mm Bowl Adapter
Flat base plate
Storage Bag
USER MANUAL
7'WAVE AROUND THE WORLD
Guaranteed Fast Delivery |
Quick and Efficient |
Easy Returns |
1-Year Warranty |
Q&A
Ask a Question-
Can you attach the Zhiyun Crane 3S gimbal to the Wave-2 and if so which adapter is necessary.
Yes, You can mount Zhiyun Crane 3S gimbal on Proaim 7' Wave-2 Jib with the help of Flycam Quick Release DJI-QR and Proaim Quick Release plate P-QRG.
Here are the item links for your reference:
DJI-QR: https://www.proaimusa.com/products/flycam-quick-release-mount-for-ronin-m-mx
P-QRG: https://www.proaimusa.com/products/proaim-quick-release-plate-for-hand-held-gimbals -
Concerning the Proaim 7' Wave-2 Jib Crane, what "standard" counter weights does it use?
The weight rod diameter of the Proaim 7' Wave-2 Jib Crane is 25mm. You can use any counterweight with this diameter. Here is an image for reference: https://prnt.sc/tfZ_gD8tpJEu
-
Can i mount the PT-SPIN-3 directly on Wave-2 Jib ?
Yes, you can direclty mount the PROAIM Spin-3 (3-Axis) Motorized Pan Tilt Head for Camera Jib Crane, Payload- 15kg/33lb PT-SPIN-3 on the Wave-2 Jib
PT-SPIN-3: https://www.proaimusa.com/products/proaim-spin-3-3-axis-motorized-dutch-roll-pan-tilt-head -
Can I mount DJI RS3 PRO on this jib ?
Yes, You can mount the DJI RS3 PRO on P-WV-2 (Wave-2 7ft Jib) with the help of QR-WV-710 and P-QRG.
Firstly you have to mount the QR-WV-710 on the Jib and then P-QRG, and then you can easily mount your DJI RS3 PRO.
Here are the links for your reference:
QR-WV-710: https://www.proaimusa.com/products/proaim-mount-for-dji-ronin-m-mx
P-QRG: https://www.proaimusa.com/products/proaim-quick-release-plate-for-hand-held-gimbals
